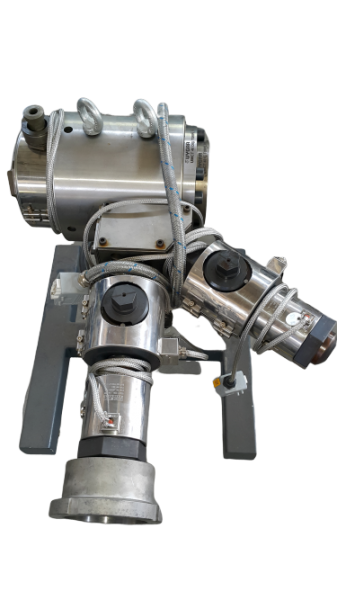

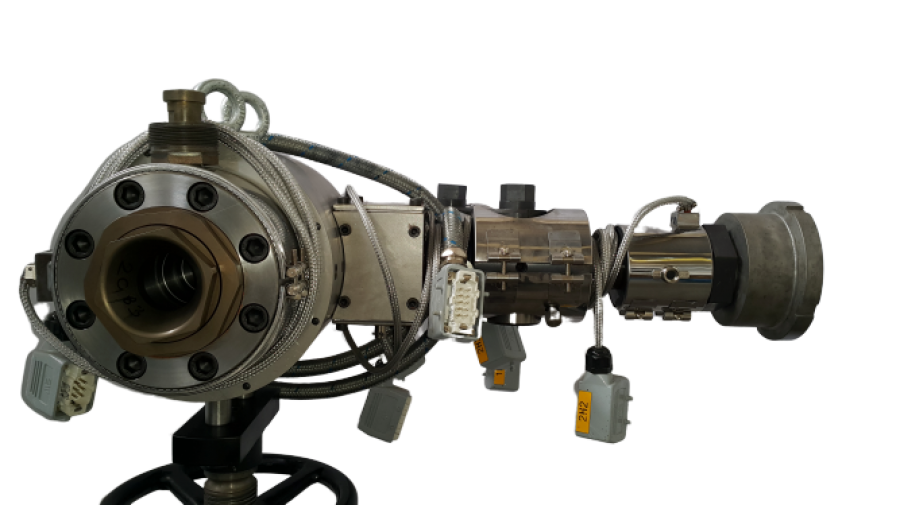

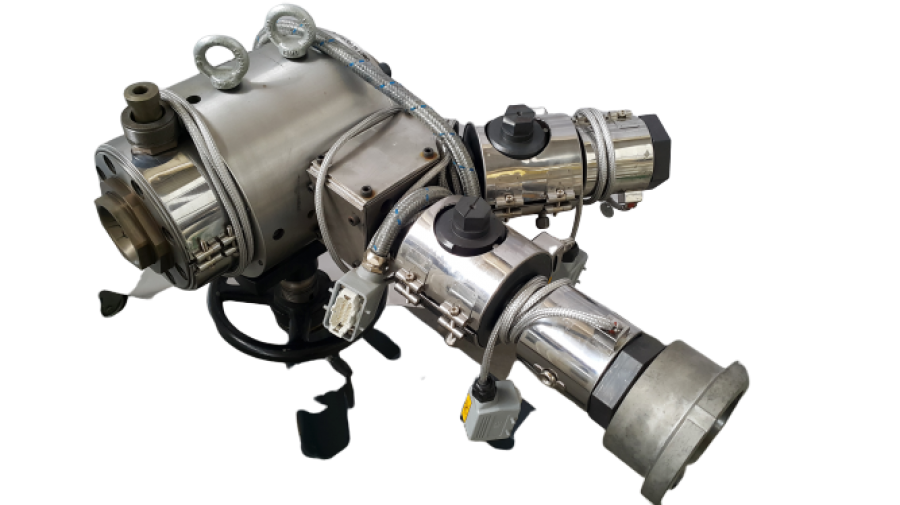

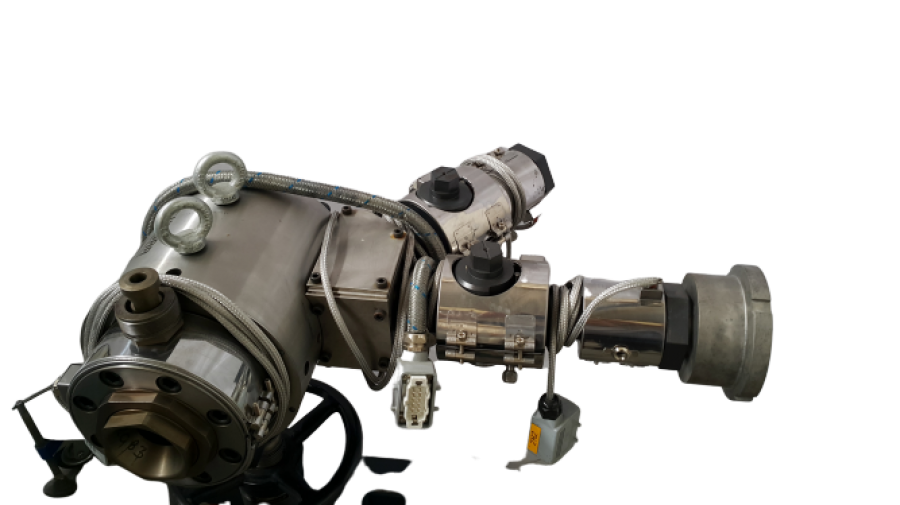

Umk40-2 Crosshead For Dual And Multı Layer Extrusıon

The die is made of special plastic die steel and therefore durable against wear and corrosion.
High quality tubular and mica insulated stainless band type resistances are used.
Because of the fixed center, operation is more optimized; it saves time and material.
Due to simple design and accessibility of the die, it allows a rapid tool change.
Maintenance: there are fewer moving parts and bolts, this enables an easier maintenance.
Because there are no dead spots, holes and slots, it eliminates the daily cleaning and maintenance needs.
No adjustments are necessary, therefore the engineering control of the operation is easier. After adjusting the operation, the adjustments remain constant.
Since it has self-cleaning feature, preventive maintenance is unnecessary during operation.
It provides a nominal compound insulating and the material flows without any dead-lines. Thus, a flow of 360 degrees of the material is provided.
Crosshead can skin the colored plastic onto the plastic in the center, according to the needs from approx. 0.10 – 0.15 mm.
The advantage it provides is, that it lowers the dye costs. Additionally, because of using just one type of granulate, it lowers also the cable cost.
It is possible to produce variety of flat cables with special design die and tip.
Die can be adjusted back and forth.
Max. Product diameter: 40 mm
Max. Tubing diameter: 40 mm
Max. Conductor diameter: 30 mm
